Benefits

CV Supply Equine Horse Stall Flooring

Features

Specifications

  • The Equiterr horse stall flooring stabilization system eliminates wet, muddy, rutted footing conditions in arenas, stalls and paddocks by improving drainage and establishing a stable base on which to apply your chosen footing material
  • The system allows for year round utilization end enjoyment of your riding facilities
  • Reduces the risk of injury to the horse and rider by eliminating unstable footing conditions
  • Prevents the footing material from mixing with and dissipating into the sub soil
  • Reduces footing maintenance costs by extending useful life

Horse Stall Flooring Solutions

If you want a quote on your future horse stall flooring solution, contact us or give us a call at (205)999-1744 today!

Copyright 2022 CV Supply. All Rights Reserved.

Equiterr

  • Made of durable, but flexible recycled Polyethylene plastic

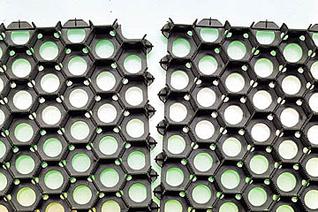

  • Honeycomb structure provides excellent stability and compressive strength characteristics. Equiterr horse stall flooring will support the weight of farm equipment, trailers and road vehicles
  • Ample drainage ports provide vertical and horizontal drainage
  • Bottom cleats stabilize panels during the installation process
  • The over and under lapping panel joint allows for expansion and contraction during weather changes
  • Joint design allows for quick and effortless installation
  • Light weight and simple to install. Weighs only 2.4 lbs. per panel

If you want a quote on your future horse stall flooring solution, contact us or give us a call at (205)999-1744 today!

(CSI 02795 Porous Paving)

Product Material:
Minimum 97% post-consumer recycled, reinforced high density Polyethylene (HDPE).
Maximum 3% UV stabilizations and coloring.

Dimensions:
Large: 19-3/4" x 15-1/4" x 1-3/4"
(50 x 39 x 4.5 cm) 2.14 sf
5 pieces = 1 meter sq

Design:
Hexagon Cells each 2-1/8" x 2-3/8" with 1-5/16" base opening and 1/2" perimeter openings (horizontal and vertical drainage). 1/8" cell wall and base thickness (strength in design not fill)

Weight:
Large: 2.4 lbs/ panel

Color:
Black
